RAZR
SGS II
Samsung Nexus S
SE Xperia arc

RightMark Audio Analyzer test


Testing chain: External loopback (line-out - line-in)
Sampling mode: 16-bit, 44 kHz




Summary

TestRAZRSGS IISamsung Nexus SSE Xperia arc
Frequency response (from 40 Hz to 15 kHz), dB: +1.04, -0.42+1.39, -0.52+0.55, -0.26+2.48, -1.02
Noise level, dB (A): -85.0-83.7-85.3-84.5
Dynamic range, dB (A): 84.783.985.084.4
THD, %: 0.00430.00430.0830.191
IMD + Noise, %: 0.7220.8920.5010.458
Stereo crosstalk, dB: -54.3-61.8-58.6-53.3

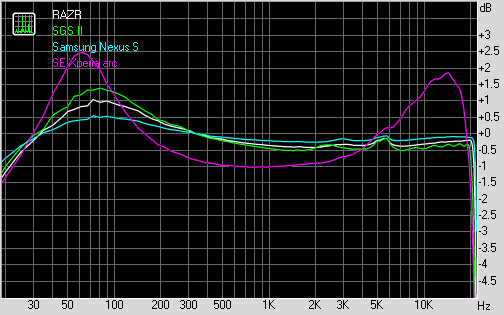

Frequency response

Spectrum graph


Noise level

Spectrum graph

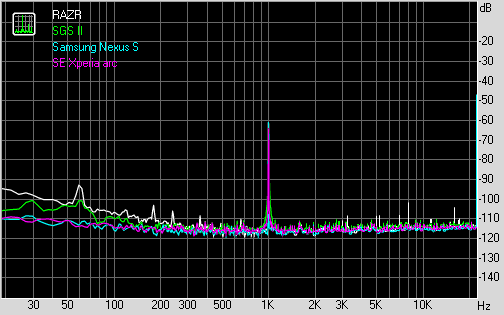

Dynamic range

Spectrum graph


THD + Noise (at -3 dB FS)

Spectrum graph

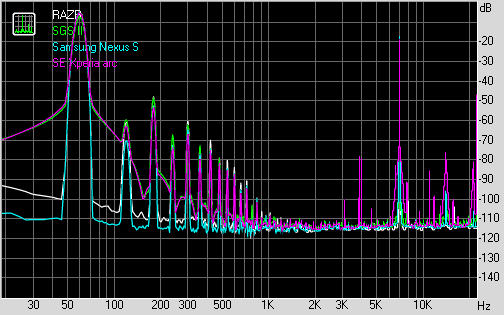

Intermodulation distortion

Spectrum graph

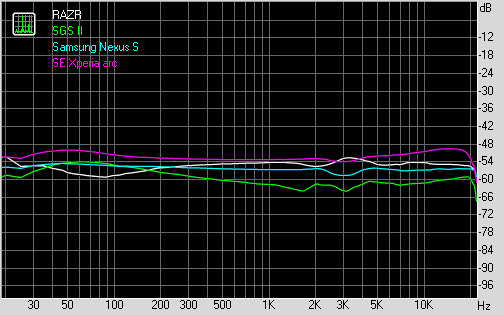

Stereo crosstalk

Spectrum graph



This report was generated by RightMark Audio Analyzer 6.0
